Other Dimensions & material grades available upon request

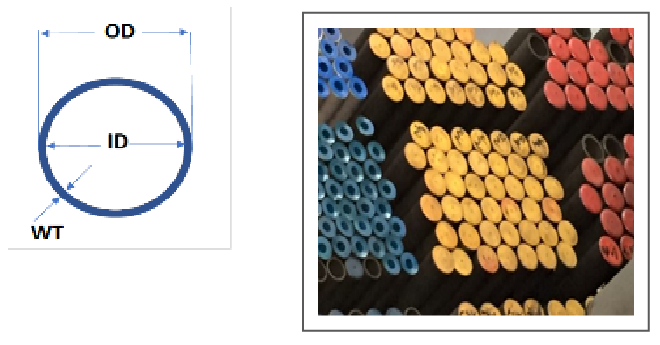

| Metric (OD) | : | 5.00 to 60 mm |
| Imperial (OD) | : | 1/8" (3.175) to 1" (25.40 mm) |
| Wall Thickness | : | 0.50 to 6.00 mm |
| Length | : | 6000 mm |
Other Dimensions & material grades available upon request
| Carbon % (max.) | Moganese (M)% (min.) | Phosphorous (P)% (max.) | Sulfur (S)% (max.) | Silicon (Si)% (max.) |
|---|---|---|---|---|
| 0.170 | 0.350 | 0.040 | 0.040 | 0.350 |
| Carbon % (max.) | 0.170 | |
| Moganese (M)% (min.) | 0.350 | |
| Phosphorous (P)% (max.) | 0.040 | |
| Sulfur (S)% (max.) | 0.040 | |
| Silicon (Si)% (max.) | 0.350 |
| Yield Point (Mpd) | Tensile Point (Mpd) | Elongation (%) |
|---|---|---|
| Min. 235 | 350 - 480 | Elongation (%) Min. 25 |
| Yield Point (Mpd) | Min. 235 | |
| Tensile Point (Mpd) | 350 - 480 | |
| Elongation (%) | Elongation (%) Min. 25 |
